MuxLab MuxStream Live Streaming Solution

Add to wishlist
Compare

$478.70

Estimated delivery on 19 April - 31 May, 2026
Compare

Items Included

  • MuxLab MuxStream Live Streaming Solution
  • Wireless Lavalier Microphone System
  • Limited 2-Year Manufacturer Warranty
Key Features
  • 1080p60 HDMI/IP PTZ Camera
  • Wireless Lavalier Microphone System
  • MuxStream Control App. 12x Optical Zoom
  • H.265/264 Video Streaming Codecs
  • RTMP/RTSP, HTTP, Onvif, Multicast
  • Stream to Facebook, YouTube, and More

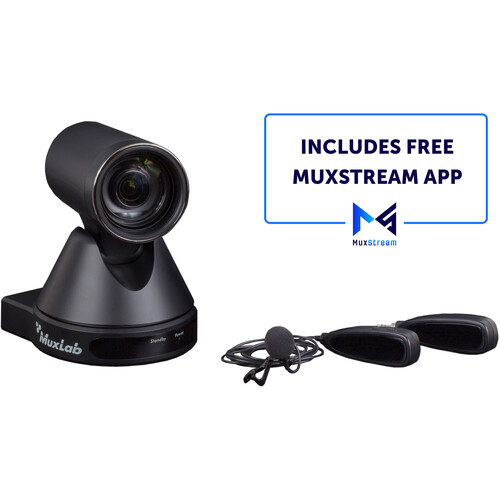

Add a complete video streaming kit to your conference room, lecture hall, event space, or house of worship for broadcast to the Internet with this MuxStream Live Streaming Solution from MuxLab. The kit includes a 1080p HDMI/IP PTZ camera, a wireless lavalier microphone system, an IR remote control, and a camera power cable.

The PTZ camera allows you to capture up to 1080p60 video and plugs into a network switch up to 330′ away to stream the camera video using high-resolution, low-latency H.265/H.264 video codecs. The lavalier microphone receiver also plugs into the camera’s line input to provide audio with the camera feed and it wirelessly connects to the mic transmitter. The microphone itself features a long cable and clips onto a shirt or jacket.

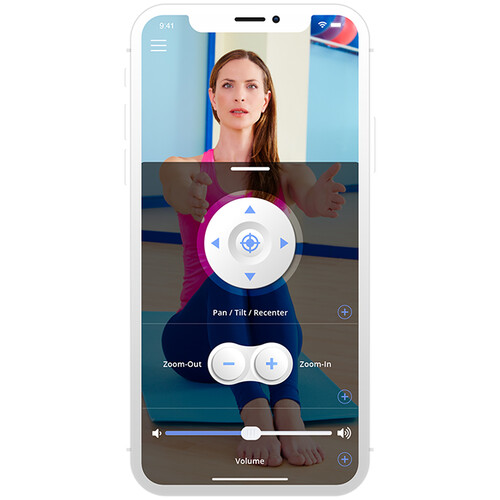

The free-to-download MuxStream control app installs onto your Android or iOS tablet or Windows system, allowing you to set up the system, control the PTZ camera, and broadcast to services such as YouTube, Facebook, or other streaming applications.

Key Features
AV-over-IP MuxStream camera supports up to 1920 x 1080p60 video streams
Low-bandwidth streaming via an H.264/265 video codec, optimal for LAN and Internet transmission
High-quality imagery and <200 ms latency in low-latency mode with H.265
Supports multicast, TCP/IP, HTTP, RTSP, RTMP, Onvif, and DHCP protocols
Includes wireless clip-on lavalier mic with transmitter and receiver
Managed via free MuxLab MuxStream Control app available for iOS/Android tablets and Windows
Applications
Live AV presentation broadcasts over the Internet via YouTube, Facebook, Skype, Wowza, and more
Streaming to OBS and Wirecast AV content production tools
House of worship, corporate conferences, fitness training, education, events, and more



Category:
Image Sensor
1/2.7″-Type CMOS
Sensor Resolution
Effective: 2.07 Megapixel (1920 x 1080)
Shutter Speed
1/10000 to 1/30 Second
Optical Zoom Ratio
12x
Max Digital Zoom
16x
Video Output
HDMI
1920 x 1080p at 59.94 fps
Broadcast Output
NTSC
IP Streaming
H.264/MJPEG/H.265 via TCP/RTSP/RTMP/ONVIF
480 x 360 to 1920 x 1080
Supported Control Protocols
IP
Pelco-D
Pelco-P
RS-232
Imaging
Image Sensor
1/2.7″-Type CMOS
Sensor Resolution
Effective: 2.07 Megapixel (1920 x 1080)
Focus Control
Autofocus
Exposure Control
Shutter Speed
1/10000 to 1/30 Second
Signal-to-Noise Ratio
55 dB
Minimum Illumination
0.5 Lux
Lens
Focal Length
3.5 to 42.3mm
Optical Zoom Ratio
12x
Max Digital Zoom
16x
Maximum Aperture
f/1.8 to 2.8
Video Capture
Video Output
HDMI
1920 x 1080p at 59.94 fps
Broadcast Output
NTSC
IP Streaming
H.264/MJPEG/H.265 via TCP/RTSP/RTMP/ONVIF
480 x 360 to 1920 x 1080
Control
Presets
255 via IP, RS-232, VISCA
Pan/Tilt
Pan: 340° (-170 to 170°) at 1.7 to 100°/s
Tilt: 120° (-30 to 90°) at 0.7 to 28°/s
Supported Control Protocols
IP
Pelco-D
Pelco-P
RS-232
Interface
Video I/O
1x HDMI 1.4 Output
1x RJ45 (Unspecified Signal) Output
Audio I/O
1x 1/8″ / 3.5 mm TRS Stereo Line Input
Other I/O
1x Mini-DIN 8-Pin (Pelco-D, Pelco-P, RS-232, VISCA) Control Input
Built-In Microphone
No
Built-In Speaker
No
Power
Power I/O
1x Barrel (12VDC up to 1 A) Input
Power Consumption
Power Supply: 12 W
Environmental
Operating Conditions
14 to 104°F / -10 to 40°C
Storage Conditions
-40 to 140°F / -40 to 60°C
General
Certifications
CE, FCC, RoHS
OS Compatibility
Android/iOS
Dimensions (W x H x D)
11.9 x 9.4 x 5.7″ / 301 x 240 x 145 mm
Weight
3 lb / 1.4 kg (Body Only)
Packaging Info
Package Weight
5.99 lb
Box Dimensions (LxWxH)
12.1 x 9.8 x 5.7″
